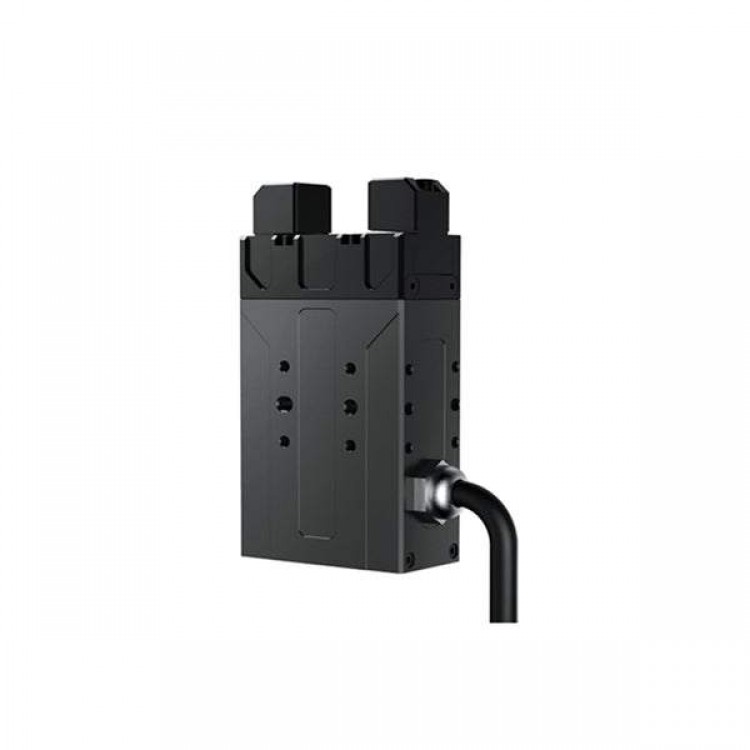

Chengzhou industrial slim-type electric parallel gripper DH-Robotics PGE-50-26

Description

• Integrated design which integrate the controller and servo motor in gripper
• Force, stroke and working speed are adjustable
• Smart feedback on gripping status
• Precise Force Control to grip fragile small parts
• Fingertips can be replaced

Small size | Flexible installation

The thinnest size is 18 mm with compact structure, supports at least five flexible installation methods to meet the needs of clamping tasks & saves design space.

High Working Speed

The fastest opening and closing time can reach 0.2 s / 0.2 s, which can meet the high-speed and stable clamping requirements of the production line.

Precise Force Control

With special driver design and driving algorithm compensation, the gripping force is continuously adjustable, and the force repeatability could reach 0.1 N

What's Included

Gripper*1

RS485 module*1

Cable*1

Installation screw kit

Specifications

Gripping force: 15~50N

Stroke: 26mm

Recommended workpiece weight: 1kg

Repeat accuracy (positioning): +_0.02 mm

Opening/closing time: 0.3s / 0.3s

Noise emission: under 40 dB

Rated voltage: 24 V DC +_ 10%

Rated current: 0.25A

Peak current: 0.5A

IP class: IP 40

Recommended environment: 0~40 Celsius, under 85 RH

Communication interfaceStandard: Modbus RTU (RS485), Digital I/O

Optional: TCP/IP, USB2.0, CAN2.0A, PROFINET, EtherCAT
