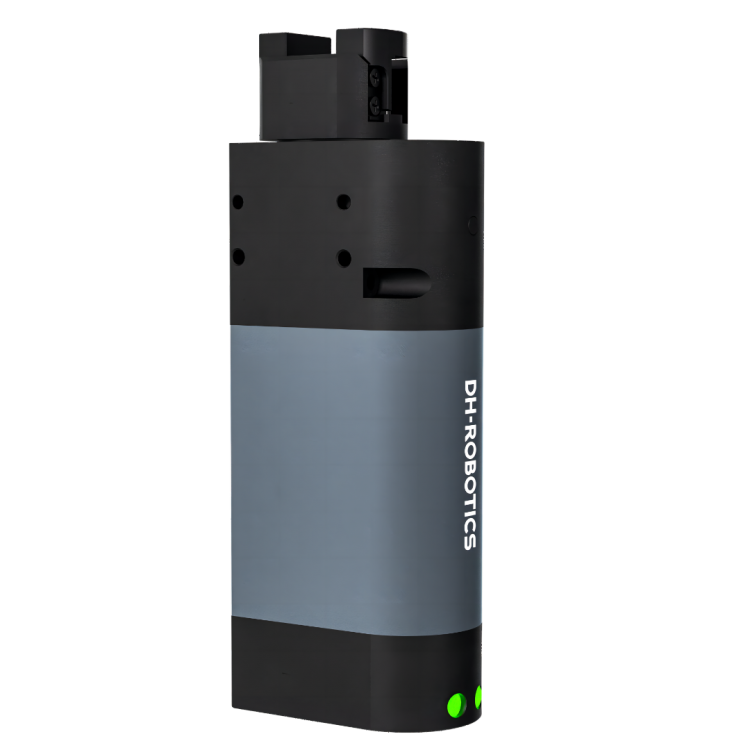

DH-Robotics RGIC Infinite Rotating Electric Gripper for Medical and Lab Industry
$1,350.00
- Stock: 1
- Brand: DH-ROBOTICS
- Model: RGIC-35-12
DH-Robotics RGIC Infinite Rotating Electric Gripper for Medical and Lab Industry
Open your store for free → Become a Seller
- Gripping & Infinite Rotation
The unique structural design in the industry can realize the simultaneous griping and infinite rotation on one electric gripper, and solve the winding problem in non-standard design and rotation.
- Compact Double Servo System
Dual servo systems are creatively integrated in a thin machine body,which is compact in design and can be adapted to many industrial scenes.
- High Gripping Force and Torque
The maximum single-sided gripping force is 100N,and the maximum torque is 1.5N·m. Though precise force control and position control. the RGl gripper can more stably complete the grasping and rotating tasks.
Parameters:
Gripping Force: 13-35N
Stroke: 12mm
Rated torque: 0.2N·m
Peak Torque: 0.5N·m
Rotary range: Infinite Rotating
Recommended workpiece weight: 0.5kg
Gripper Weight: 0.64kg

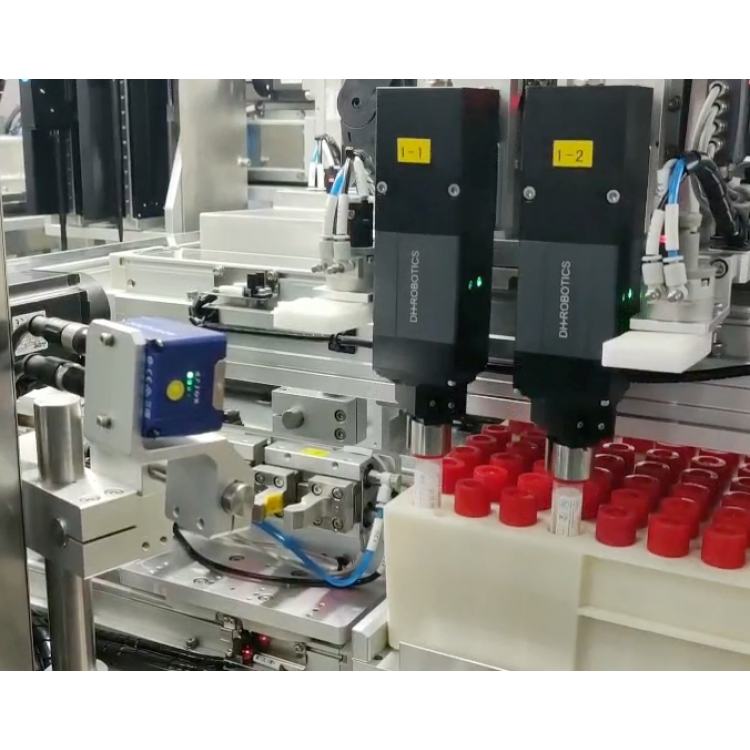

This series rotary gripper widely used in Medical automation reagents, blood samples, nucleic acids and other sample processing scenarios such as opening and closing covers, scaning code detection, etc.
