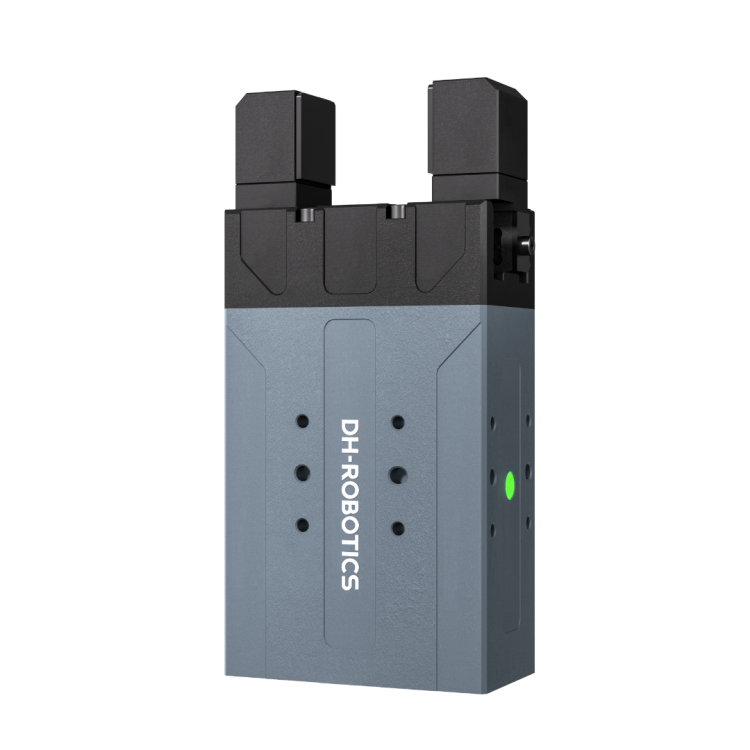

Features:
- Small Size & flexible Installation
- The thinnest size is 26 mm with compact structure, supports at least five flexible installation methods to meet the needs of clamping tasks, and saves design space.
- High Speed: The fastest opening and closing time can reach 0.2 s / 0.2 s, which can meet the high-speed and stable clamping requirements of the production line.
- Precise Force Control: With special transmission design and driving algorithm compensation, the gripping force is continuously adjustable, and the force repeatability in units of 0.1 N can be achieved*.
- Gripping force: 15~50N
- Stroke: 26mm
- Recommended workpiece weight: 1kg
- Opening / closing time: 0.45s/0.45s
- Gripper weight: 0.4kg
- Certification: CE/FCC/RoHS
More details, pls contact for catalog
