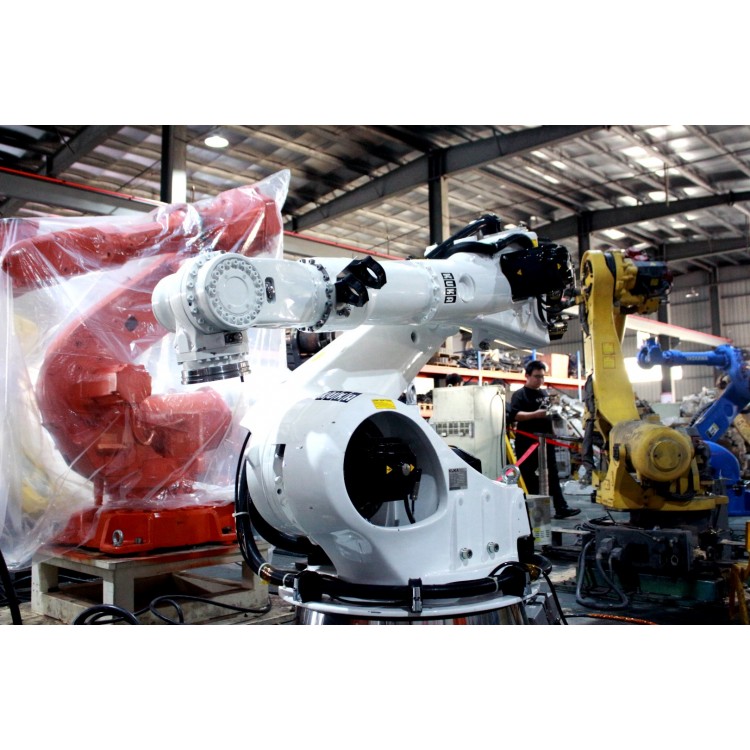

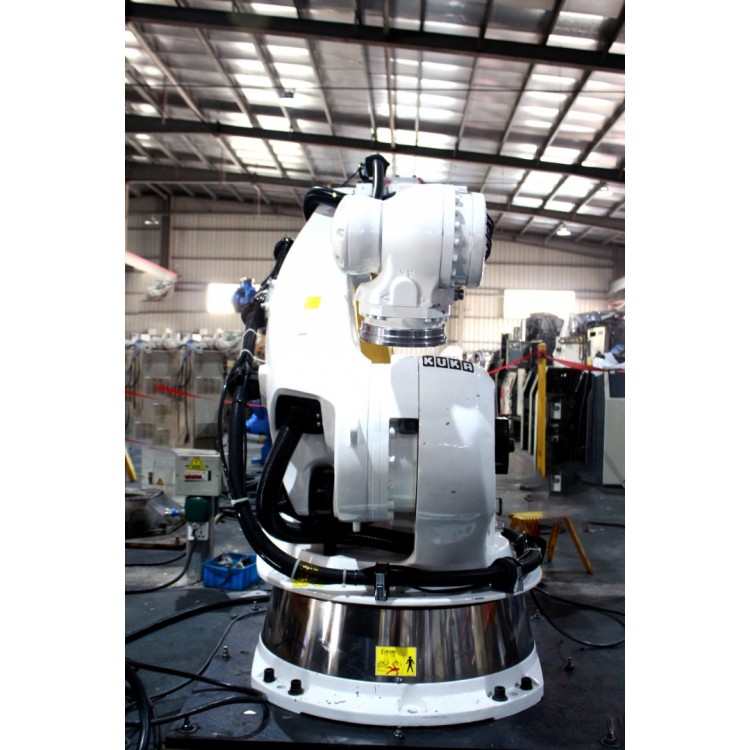

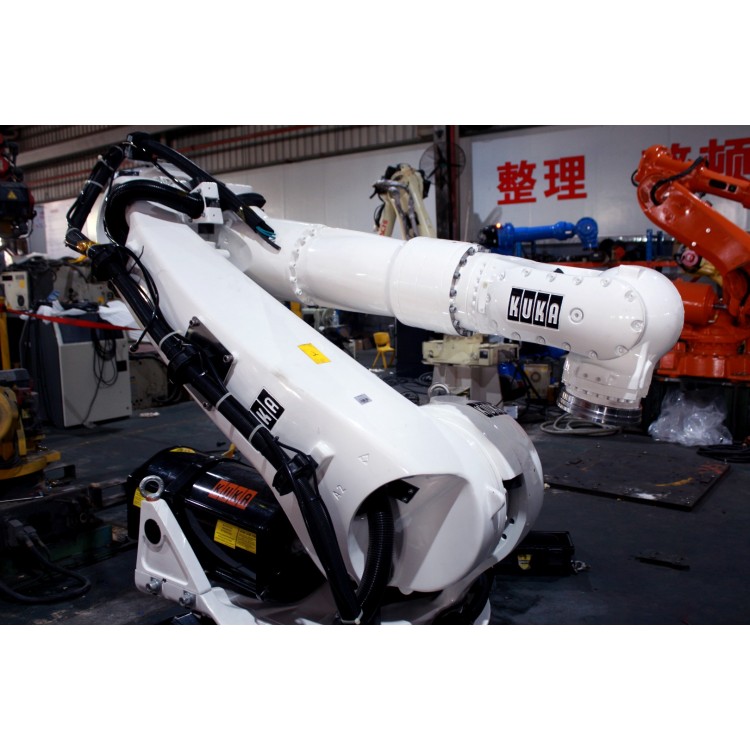

KUKA KR180 L130-2 CR2000 Robot

KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
KUKA KR180 L130-2 CR2000 Robot
STORE:

Get free quote for the best price !

$1.00
  • Brand: KUKA
  • Model: KR180 L130-2 CR2000
Features
Payload (kg)130
Reach (mm)3100
Year of Prod.2016
New / Used ?USED

  • Rated payload: 130 kg
  • Maximum reach: 3100 mm
  • Mounting position: Floor
  • Pose repeatability (ISO 9283): 0.06 mm
  • Number of axes: 6
  • Ambient temperature during operation
  • 10 °C to 55 °C (283 K to 328 K)
  • Ambient temperature during stor./transp.
  • -40 °C to 60 °C (233 K to 333 K)
  • Protection rating (IEC 60529): IP65
  • Prot. rating, in-line wrist (IEC 60529): IP65
  • Cleanroom class (ISO 14644-1): Class 5 at 40% override, Class 5 at 80% override
  • Motion Range
  • A1: ±185 °
  • A2: -146 ° / 0 °
  • A3: -119 ° / 155 °
  • A4. ±350 °
  • A5: ±125 °
  • A6: ±350 °
  • Speed with rated payload
  • A1 95 °/s
  • A2 95 °/s
  • A3 83 °/s
  • A4 171 °/s
  • A5 170 °/s
  • A6 238 °/s
