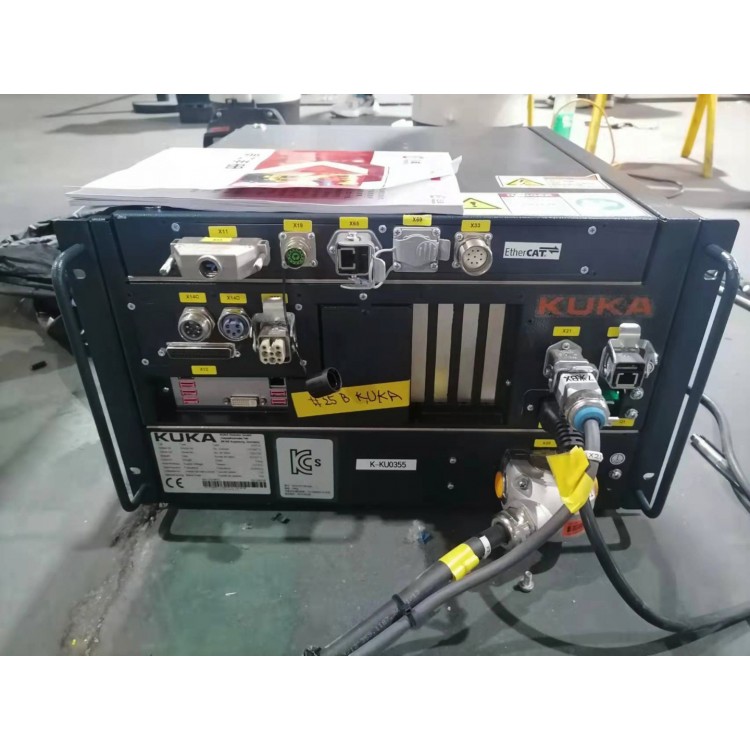

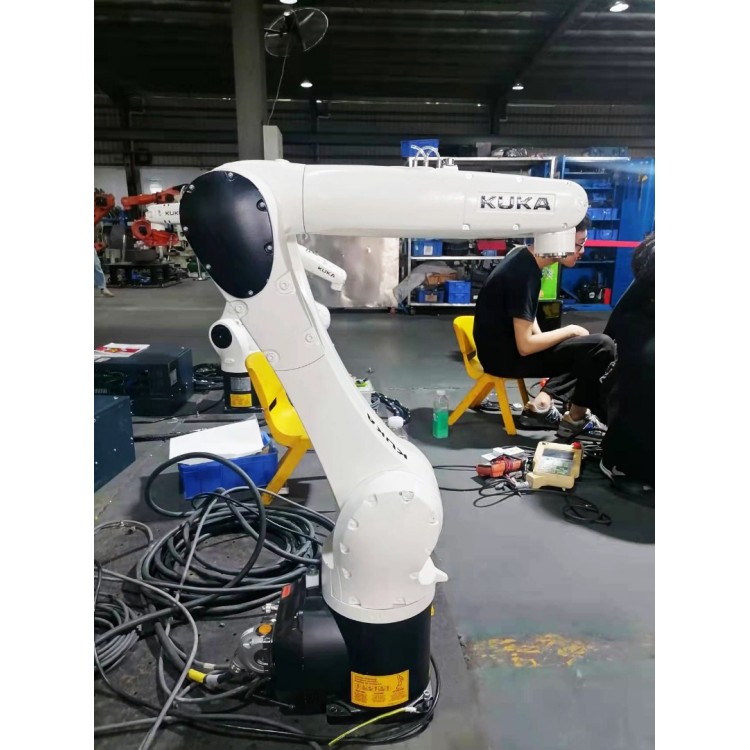

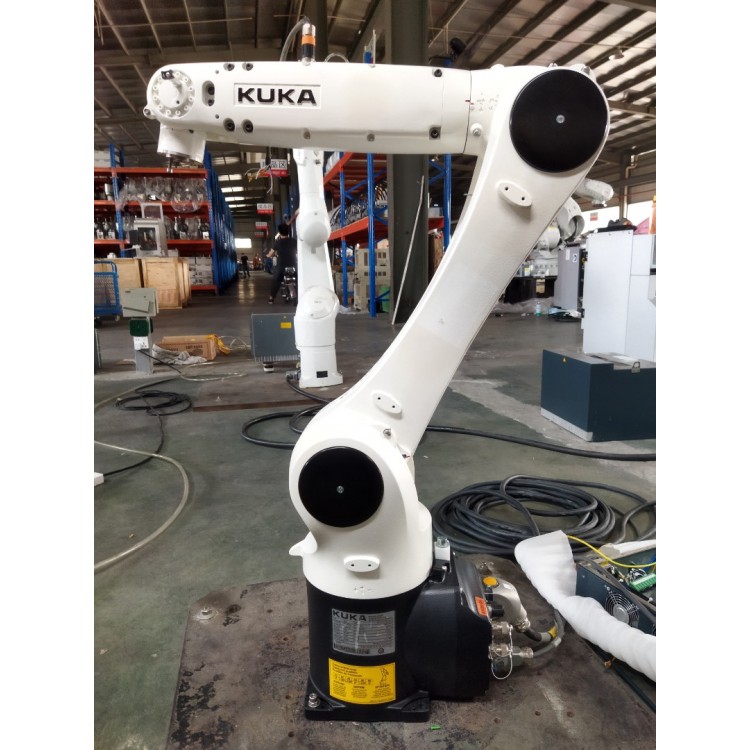

KUKA Agilus KR10 R1100 SIXX with KRC4 control cabinet
$0.00
- Stock: 1
- Brand: KUKA
- Model: KR10 R1100 SIXX
KUKA Agilus KR10 R1100 SIXX with KRC4 control cabinet
Open your store for free → Become a Seller
High speeds and incredible precision are huge attributes of the KR 10 R1100 Sixx. Tackling a variety of applications, this robot is very versatile with floor, ceiling, and wall mounting options. It has an IP54 protection rating, payload capacity of 10 kg, and 1101 mm reach.
Specifications
| Axes 6 |
| Payload: 10 KG (13.22 lbs) |
| Reach: 1100 MM (43.30 in) |
| Repeatability: ±0.03mm (.0011 in) |
| Robot Mass: 55 KG (121.25 lbs) |
| Structure: Articulated |
| Robot Motion Speed |
| A1 300 °/s (5.23 rad/s) |
| A2 225 °/s (3.92 rad/s) |
| A3 225 °/s (3.92 rad/s) |
| A4 381 °/s (6.64 rad/s) |
| A5 311 °/s (5.42 rad/s) |
| A6 492 °/s (8.58 rad/s) |
| Robot Motion Range |
| A1 - ±170° |
| A2 - -190/45° |
| A3 - -120/156° |
| A4 - ±185° |
| A5 - ±120° |
| A6 - ±350° |
